Bird & Bat Boxes – Architect Specifications

Brick bird nesting box suitable for House Sparrow, Blue and Great Tits



To download architect’s specification, click here; for data sheets contact us.



About the product

We receive more enquiries from architects than any other professional population; we do therefore have deep experience of the type of sustainable development issues you are frequently faced with.  Answers to the most common queries are set out below, however please contact us should you require clarification on any points.

  • Almost any bricks, metric and imperial can be accommodated, as can most bonds, including Stretcher (half bond), Flemish, English (quarter bond) and Soldier bond.
  • Boxes are manufactured from recycled polypropylene; brick slivers are (normally) cut from the same bricks used in the host wall and bonded to the front of the bird or bat box. The front of the box is retained by four stainless steel screws, however this can be made fixed (non-removable) if preferred. Click here for more information about brick matching.
  • A stainless steel mesh is fitted to the front instead of brick slivers in some cases, for example to ensure good adhesion to stonework or render. See photo below.
  • In many cases we are able to adapt the basic designs to accommodate an architect’s bespoke building design requirements, for example non-standard bricks or a target bird or bat species not in our list. Please contact us to discuss your particular bird home ideas.
  • The bird house / bat box is seamless when fitted in the host wall. All our boxes are supplied unpointed, so the mortar will match onsite.
  • The fitted bird or bat box is not deep enough to bridge the cavity and will not affect the insulation properties of the building.
  • Being fitted in the non-load bearing outside skin (typically of a cavity wall), no lintel is required, nor any modification to the building design.  It is not advised for boxes to be fitted within 750mm of windows or lintels.  If you are fitting clusters of boxes together (mainly swift boxes) it is advised lintels should be fitted.
  • Bird Brick Houses’ design is protected by UK patents and European rights of design.

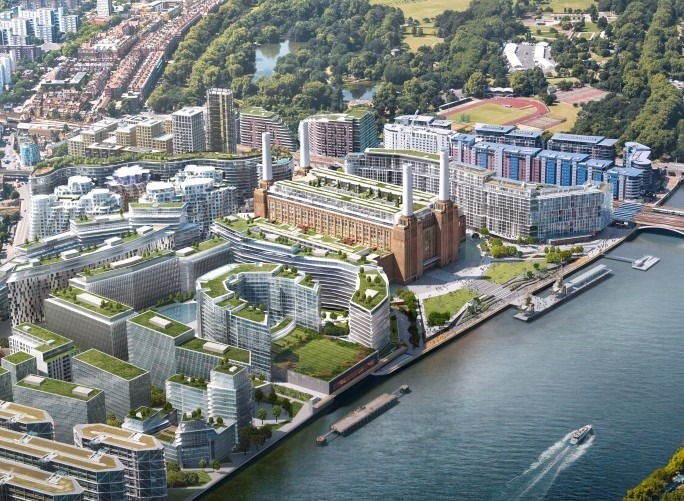

Battersea Regeneration

Battersea Regeneration,  a selection of Bird Brick Houses have been fitted in the new development.

Bat boxes for render or stone
Flemish Box House Sparrow nest box brick matched Swifts around nest holes in Charlbury, Oxfordshire Architect
Stainless Steel /Non-Combustible
Integrated Swift box Blue Tit
Bat boxes for render or stone
Flemish Box House Sparrow nest box brick matched
Swifts around nest holes in Charlbury, Oxfordshire Architect
Stainless Steel /Non-Combustible
Integrated Swift box
Blue Tit
